Schneider Digital 3D GlobeView
£0.00

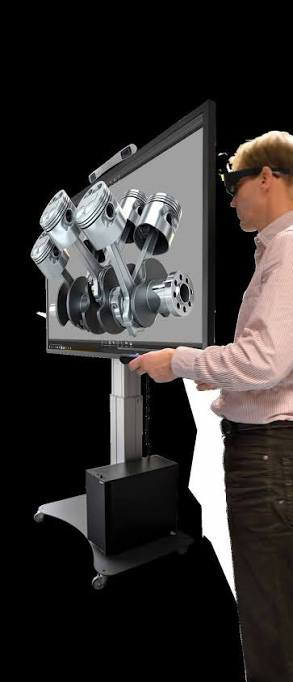

The 3D GlobeView is an ultra-high resolution, large display panel with a resolution and picture quality in 3D-stereo not seen before in large-format LCD displays. Designed specifically for high resolution professional applications, the 3D GlobeView display offers the image quality, connectivity, industrial design and configuration options required for professional and mission-critical environments.
As a 3D-stereo display, it is ideal for stereoscopic, true-depth group visualization and team interaction, offering a unique combination of very large screen area and high pixel density. It is ideally suited to provide high-resolution visual information, for instance in mid-sized conference rooms. The display surface of the 3D GlobeView can be expanded horizontally by adding additional units to create a 3D Powerwall.
For applications such as oil & gas exploration, geospatial intelligence, command center collaboration, engineering design visualization and simulation, the 3D GlobeView delivers the ultimate visual 3D-stereo or VR-interactive display surface in this format.
Display | 80″ (2.032 mm) Screen Size 3.840 × 2.160 Resolution, RGB stripe arrangment 1.06 Billon Colors (10-bit) 400 cd/m2 Brightness (Center 1point, Typ.) Aspect Ratio: 16:09 LED BackLit-Technology 8 ms Response Time G/G 178°/178° Viewing Angle (H/V) Contrast Ratio: 1.200 : 1 |
Frequency | Vertical 120Hz, Horizontal 74 MHz |
Pixel pitch | 0,453 x 0.453 mm |
Monitor type | Passive 3D stereo monitor |
3D technology | Passive stereo, line-by-line circular polarization |
3D-Characteristics | 200 cd/m2 Brightness with glasses 3.840 x 1.080 per eye resolution |
3D-Formats | Horizontally line interlaced |
Operating Systems | Windows / Linux / macOS-Compatibility |
Certification | CE |
Power supply | Internal power supply, 100-230V, 50-60Hz |
Power Consumption | Power Consumption 167,1W typical; Annual PowerConsumption 300,2 kWh / year |
Surface Treatment | Hard coating(2H) Anti-glare treatment of the front polarizer (Haze 1% Typ) |
Weight | 92 kg |
Measurements | 1.800 x 1.045 x 90 mm (W x H x D) |
Interfaces | 1x Typ C, 2x HDMI 2.0, 2x DisplayPort 1.4, 2x USB2 |
Audio | Integrated Speakers 2 x 2 W |
Technical Notes | Remote control |
Warranty | With optional carepack extended up to 5 Years; 12 months bring-in service |
Ideal viewing distance | ~ 150 – 450 cm |
Visable display size | 1.740 x 978 mm |
VESA mount | 600 x 400 mm |
Please contact us to complete your purchase of this product.
